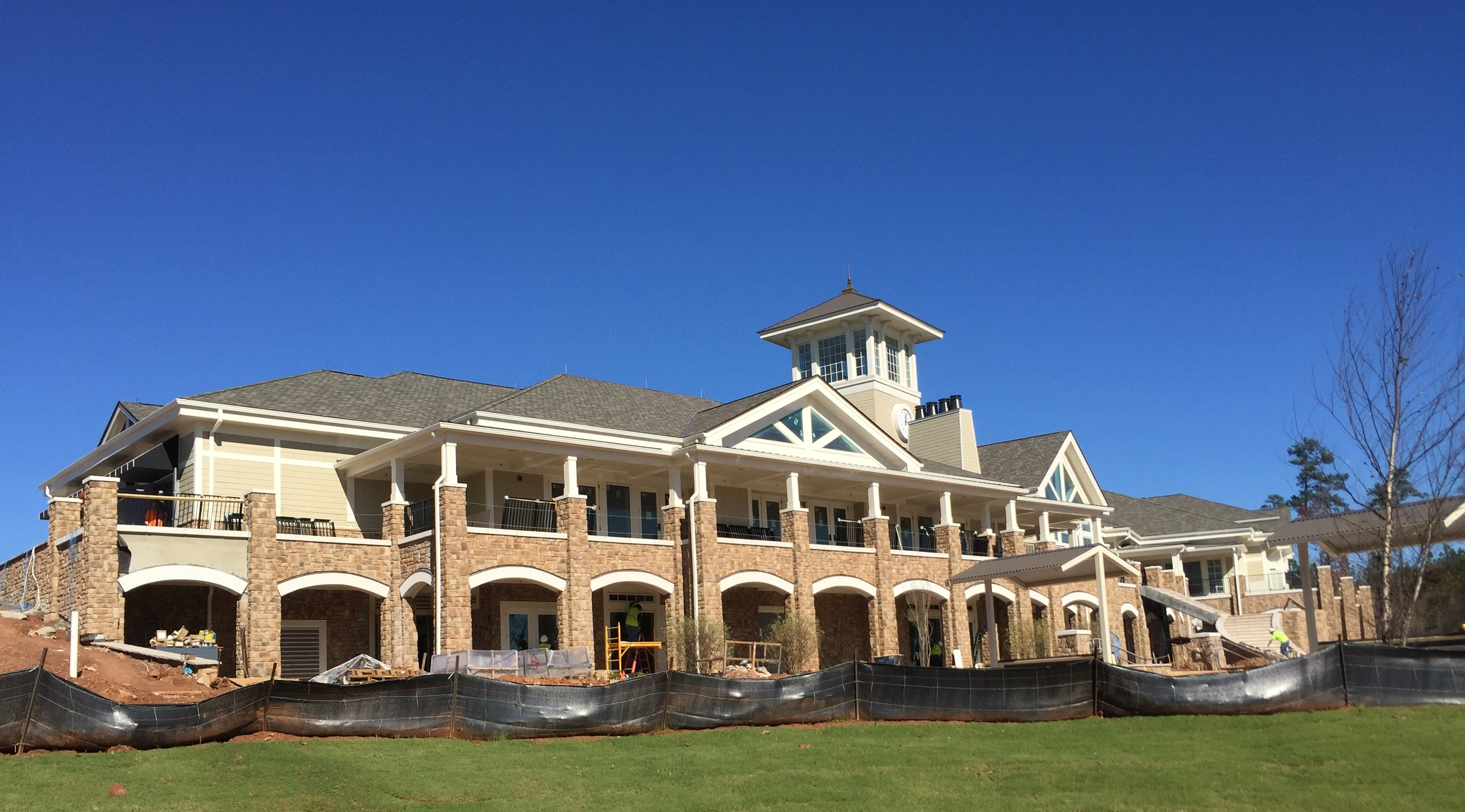

del Webb Pulte's Carolina Arbors Community Center, Raleigh, NC (2015) - 35,000 sq. ft., $12 M., An Active Adult Amenities Building, including both Indoor and Outdoor Pools; Aerobics, Fitness, & Locker Rooms;
Pottery, Art, Multi-Purpose and Meeting Rooms; and, Outdoor Courts for Bocce Ball, Pickle Ball & Tennis.
My responsibilities included coordination of an Interiors Package for drawings and pricing purposes. This included multiple floor and wall tiles, carpets, countertop surfaces, moldings, lighting, paint, and wall coverings. Attended Owner meetings. Corrected and produced interior elevations, door and finish schedules and signage package. Owner 'value engineered' interiors package prior to construction, and then re-inserted Interiors Package as an add alternate with InterWorks Architects (Northbrook, Ill.), during Construction. I assisted with coordinating the implementation of their directives and made recommen-dations. Additionally, I helped coordinate of Structural and FP & PME with architectural drawings, by producing RFI's and ASI's during Construction. Helped to size draw, specify and select copper finial at Cupola, display cases, and other similar items for project.
(Click on the picture for additional images.)
PNC (formerly RBC) Arena Club Level Suite Renovations (2011) and PNC (formerly RBC) Arena Club Level Lounges (anticipate renovation early 2016)
For Suite Renovations, I produced CAD construction drawings, coordinated FP & MEP (i.e., new sprinkler head locations), and assisted with Finish selections for all suites.
For the Club Level Lounges, we reviewed the Code for Egress Requirements, produced drawings to completely remodel the existing four Kitchens, detailed new Lounge and Eating Bars which included sneeze guards with integrated heat lamps, placed and provided for hot bar equipment, coolers, Panini presses, soda and beer drinking taps. Placement for equipment required consideration for rated walls and ceilings and their associated UL Listings. We detailed monolithic glass guardrails which overlook the monumental Stair and all Lounge pedestal lounge counter tops. I coordinated additional requirements with Interiors and PME consultants. We also facilitated Owner Express Review by filing all necessary papers and attending review.

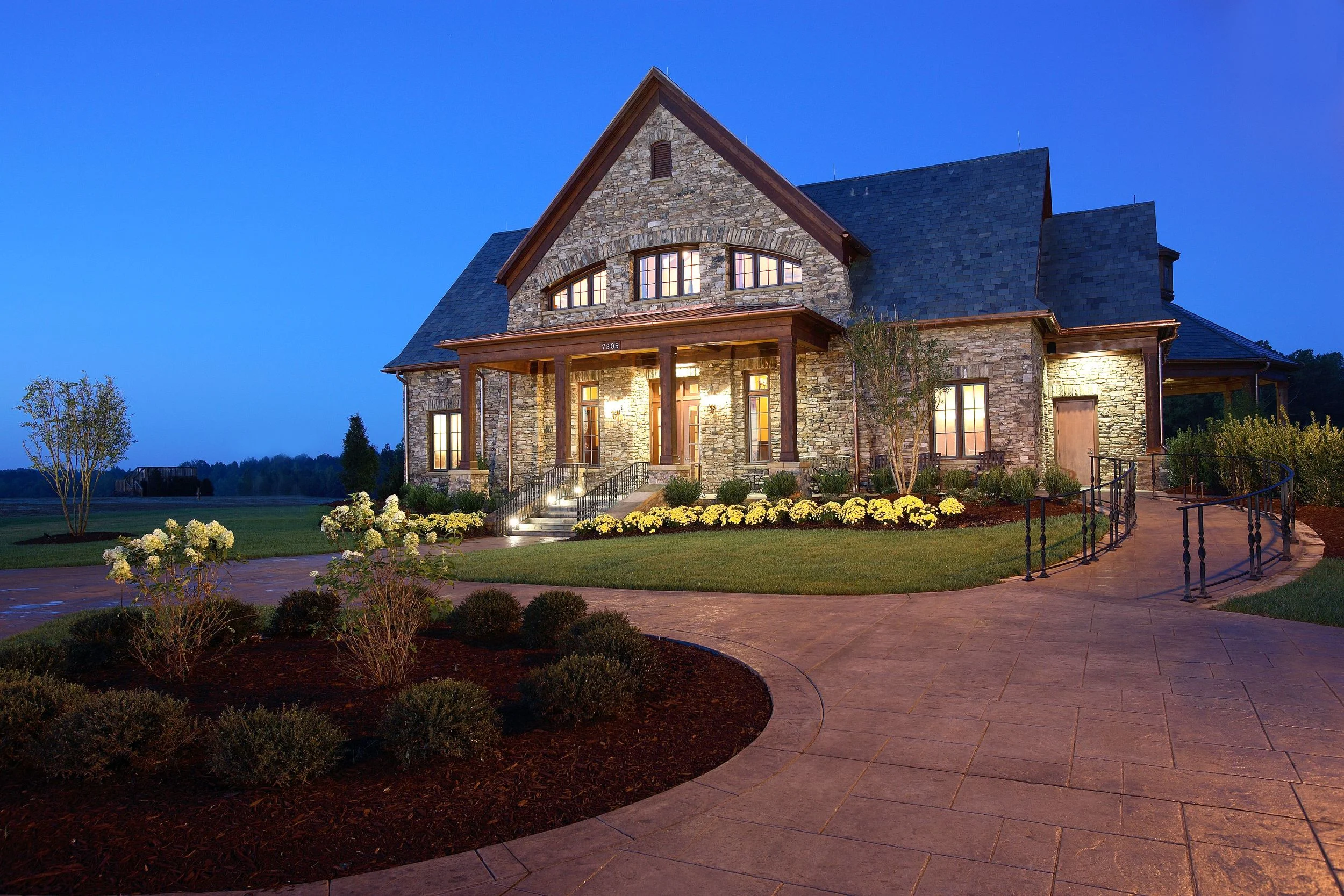

Hasentree Golf Pro Shop, Raleigh, NC (2012) and Hasentree Gatehouse, Raleigh, NC (2011)
Assisted with production of CAD drawings, including plans, elevations, and details, and some CA drawings. Helped draw interior elevations and casework.
(Click on the picture for additional images.)
Granville Elementary Gymnasium and Community Center, Franklinton, NC (2010) - 14,000 sq. ft.
Assisted with CAD drawing production for this Pre-Fabricated Gymnasium, a shared facility with the Elementary School and Granville County. The structure is clad in two types of brick, aluminum panel, and translucent fiberglass wall panels, with a standing system metal roof. I assisted with Code compliance.
